System 10

The attic build-up, layer by layer

From the roof covering inwards: what goes in each position, what each layer does and which products belong in it.

  1. 1

    Under the roof covering

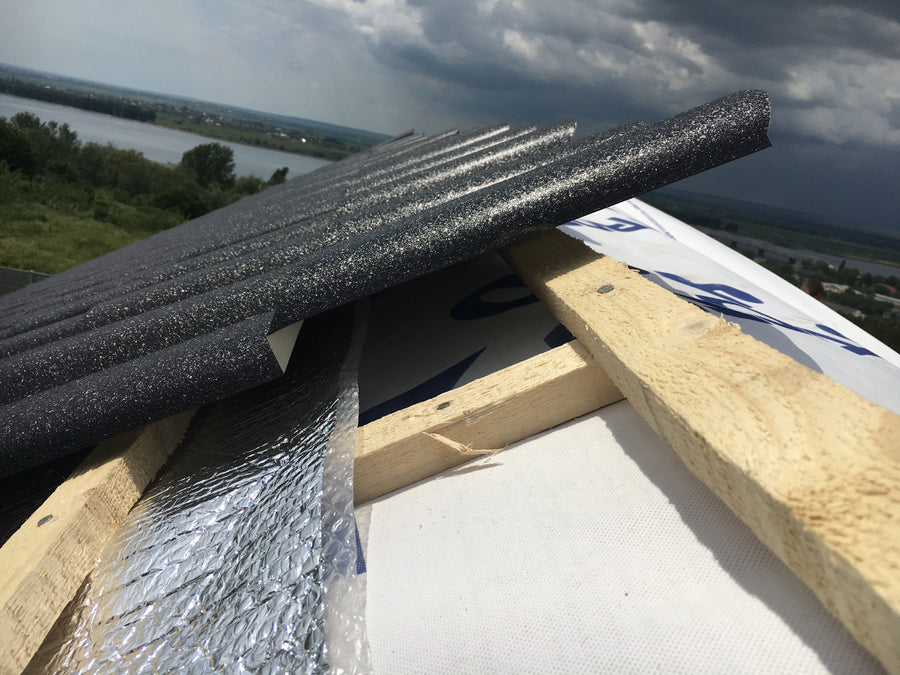

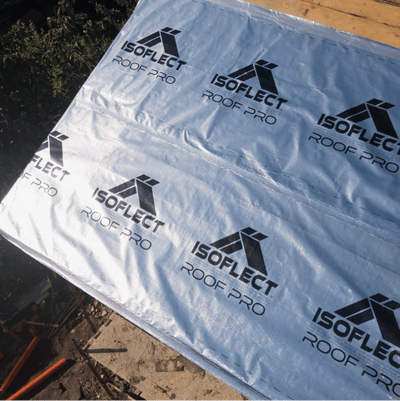

    The breather membrane: Roof Pro or Roof Eco

    The first layer from the outside. It sits over the rafters, under the battens and under the tiles or sheet metal. It lets vapour escape from the build-up and stops water that gets in beneath the roof covering.

    Roof Pro has a pure aluminium face, so it also adds a radiant barrier at the top of the roof. Roof Eco does the same, with a simpler reflective film.

    Ce face: Releases vapour, stops water and dust, reflects part of the summer heat

    Unde se montează: Over the rafters or over the sarking boards, under the counter-battens

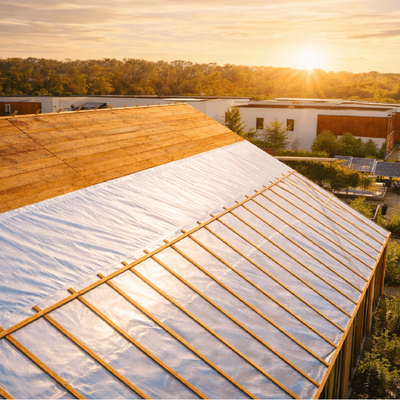

    Membrană Reflectiva Roof Pro derulată pe acoperiș, cu marcajul Isoflect Roof Pro Reflectiva Roof Pro €328,95 · €4,39/m2 Folie anticondens Isoflect Roof Eco cu folie aluminizată, 75 mp — montaj pe acoperiș, membrana fixată cu șipci peste astereală Roof Eco €226,95
    The breather membrane: Roof Pro or Roof Eco
  2. 2

    Between the rafters

    Wolle insulation fibre

    It fills the gap between the rafters. It limits heat transfer through its thickness and structure, from 0,035 W/mK, and works acoustically as well.

    It does not settle over time and does not irritate during installation. It is cut with a knife and fitted into the bays, with no joints.

    Ce face: Addresses conduction — the heat that passes through the mass of the material

    Unde se montează: Between the rafters, over their full depth, before the membranes

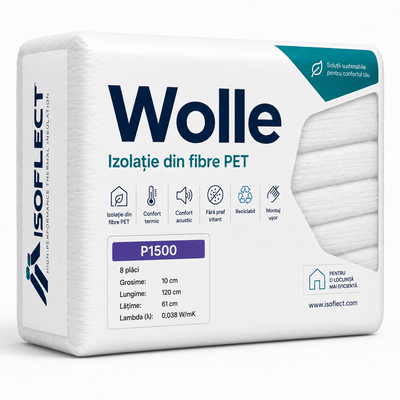

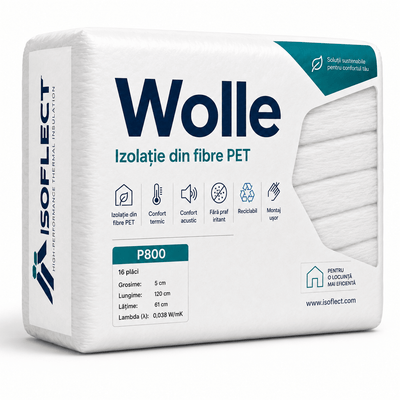

    Wolle P800, grosime 5 cm, pachet 11,712 mp, 16 plăci 1.2 x 0,61 m, conductivitate termică Lambda λ = 0,038 W/M2K - Isoflect Insulation Wolle P800, grosime 5 cm, pachet 11,712 mp,... €55,95 · €4,86/m2 Wolle P1500, grosime 10 cm, pachet 5,856 mp, opt plăci 1.2 x 0,61 m, conductivitate termică Lambda λ = 0,038 W/M2K - Isoflect Insulation Wolle P1500, grosime 10 cm, pachet 5,856 m... €55,95 · €9,71/m2 Wolle P2100, grosime 10 cm, pachet 5,856 mp, conductivitate termică Lambda λ = 0,035 W/M2K - Isoflect Insulation Wolle P2100, grosime 10 cm, pachet 5,856 m... €66,95 · €11,62/m2
    Wolle insulation fibre
  3. 3

    From the inside

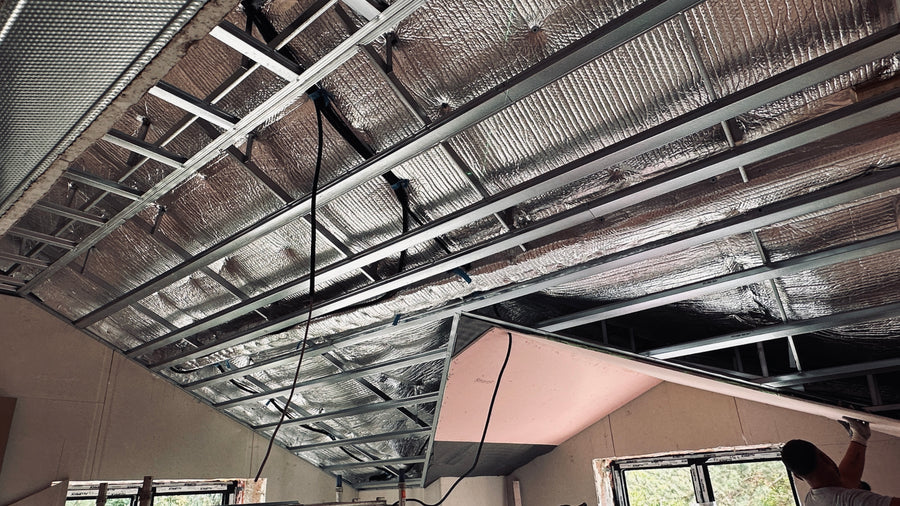

    The Reflective Pack: Gold and Multistrat

    The last two layers, the ones that close the build-up. Gold is installed under the rafters, once you have fitted the insulation between them. Multistrat is installed before the plasterboard or the timber lining.

    Together with the sealed air layer between them they form an ultra-high-performance insulating section, designed to add efficiency to the insulation already fitted between the rafters. With 10–15 cm of insulation between the rafters, the result is a performance equivalent to 21–26 cm of conventional insulation.

    Ce face: Reflect 95–97% of radiation, close off air currents and control vapour

    Unde se montează: Gold under the rafters, Multistrat before the final board

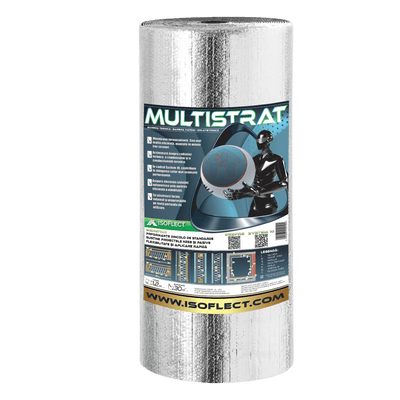

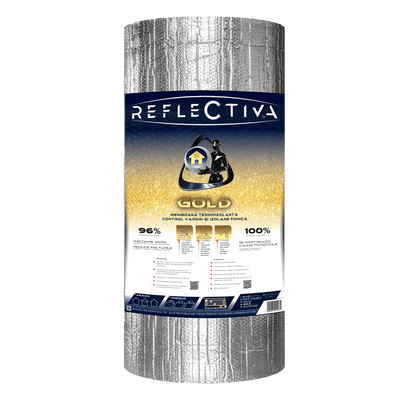

    Rolă Reflectiva Gold cu eticheta de produs Reflectiva GOLD €102,95 · €8,58/m2 Rolă Reflectiva Multistrat cu eticheta de produs Reflectiva MULTISTRAT €132,95 · €4,43/m2
    Calculate the pack by surface area
    The Reflective Pack: Gold and Multistrat

Advice

Not sure which build-up suits you?

Tell us the surface area and the depth of your rafters and we will tell you what goes into each layer, with exact quantities.

+40 21 780 7585
